Brand: THECARGOODS LAMP

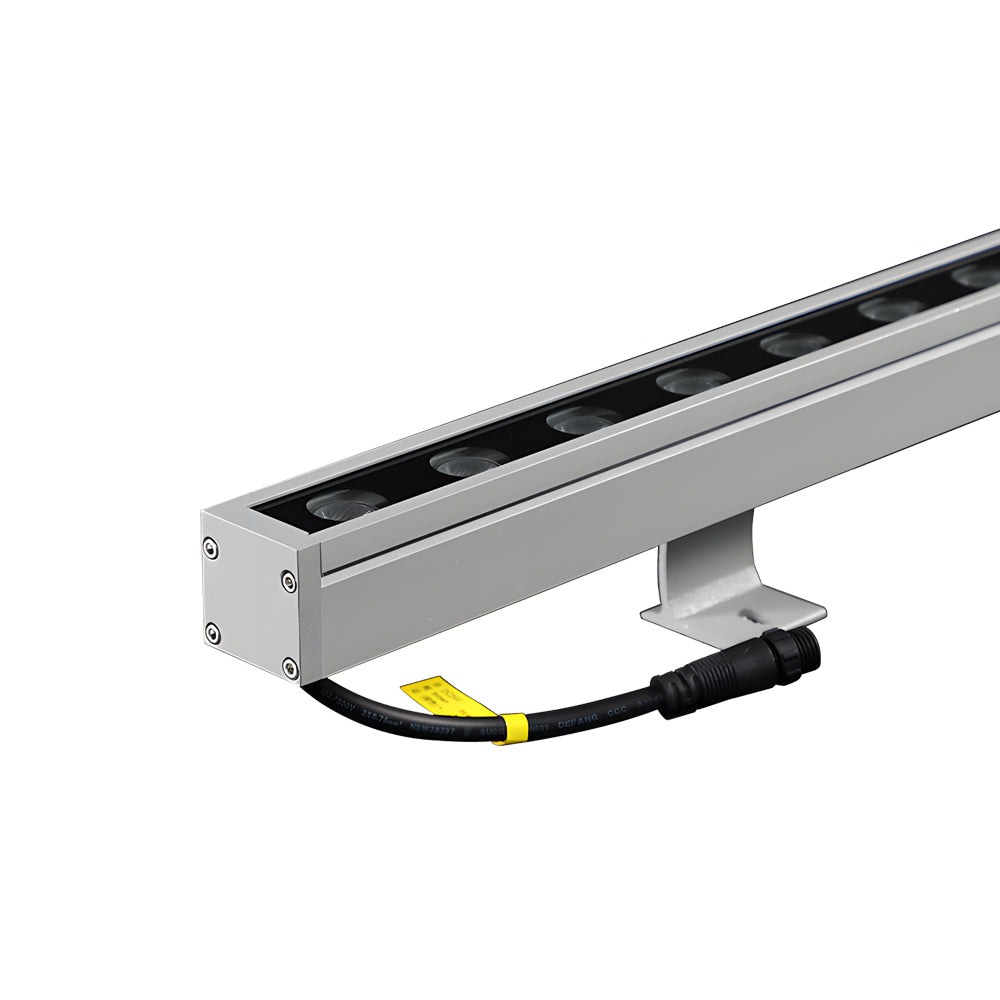

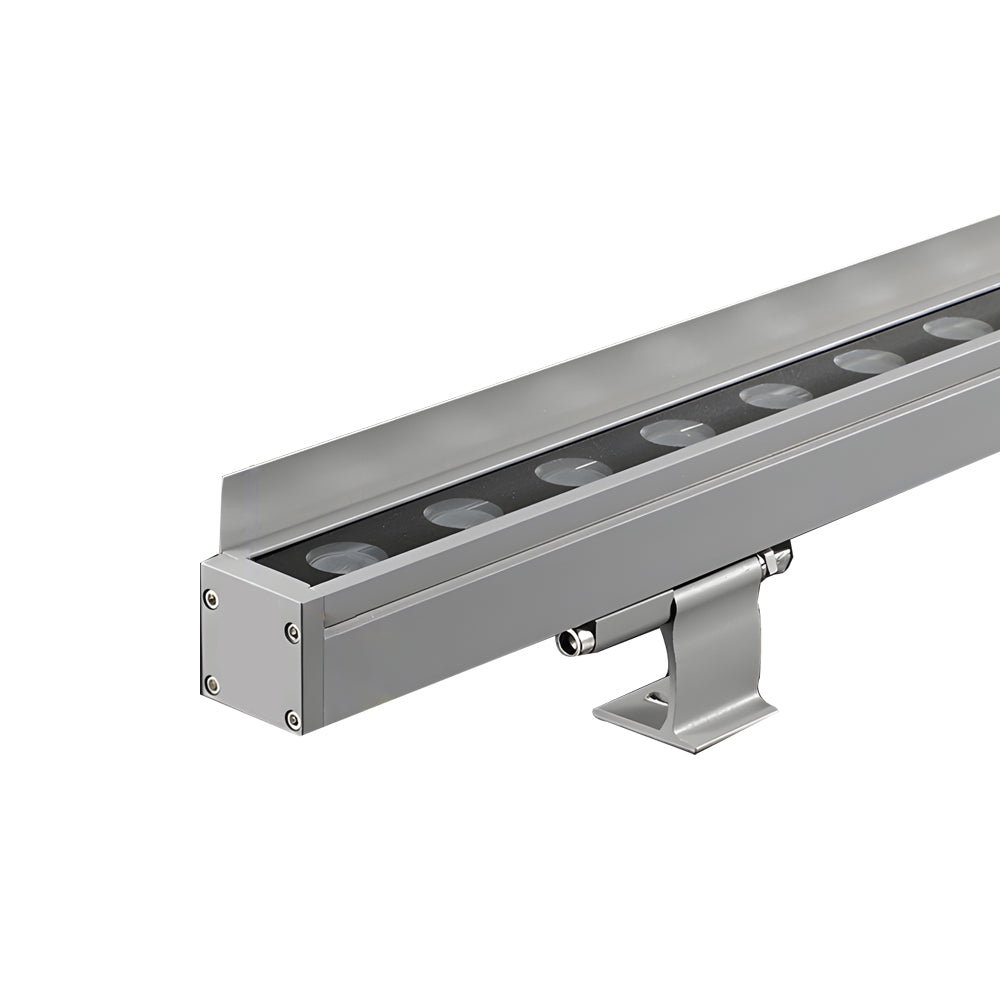

The THECARGOODS LAMP LED linear wall washer offers versatile outdoor lighting with three available LED light colors. Its robust construction features a thick matte gray aluminum housing and a tempered glass lens, ensuring durability for outdoor use. Designed with an adjustable 180-degree mounting bracket, this modern linear wall washer facilitates precise light direction. As an energy-efficient 24V LED fixture, it is available in designs both with and without baffles to suit various aesthetic and functional requirements.

IMPORTANT VOLTAGE INFORMATION:

This linear wall washer light operates on DC24V low voltage. A power supply (transformer) must be connected before installation and testing. Direct connection to 110V voltage will damage the lamp.

DETAILS

Product Name:	24V Linear Wall Washer Light
Type:	Linear Wall Washer Light
Style:	Modern
Fixture Material:	Aluminum
Fixture Color:	Gray
Shade Included:	Yes
Shade Material:	Tempered Glass, Acrylic Optical Lens
Shade Color:	Clear
Fixture Shape:	Linear
Light Source:	LED
Integrated LED:	Yes
Light Source Included:	Yes
Number of Lights:	1
Color Temperature:	Yellow Light, Warm White Light, White Light
Power:	18W/24W/36W/48W/72W
Color Temperature Dimming:	No
Brightness Dimming:	No
Light Direction:	Up
Voltage:	DC24V
Power Source:	Hardwired
Mounting Type:	Wall, Floor
Indoor/Outdoor:	Outdoor

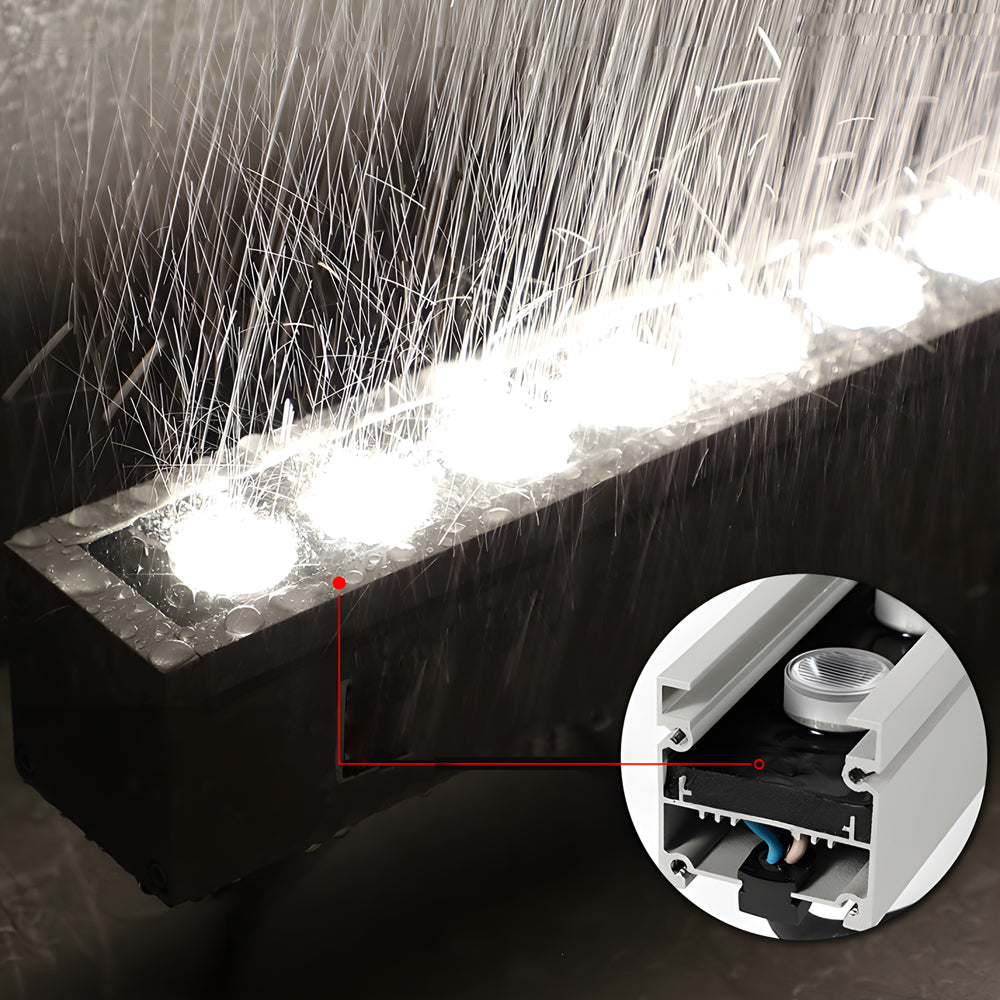

Waterproof:	IP65
Luminous Flux:	100 (LM)
Color Rendering Index:	90
Lighting Angle:	120 (Degrees)
Control Mode:	External Control
Default Cable Length:	10cm/3.9
Working Temperature:	-25-45
Applicable Scene:	Outdoor Lighting

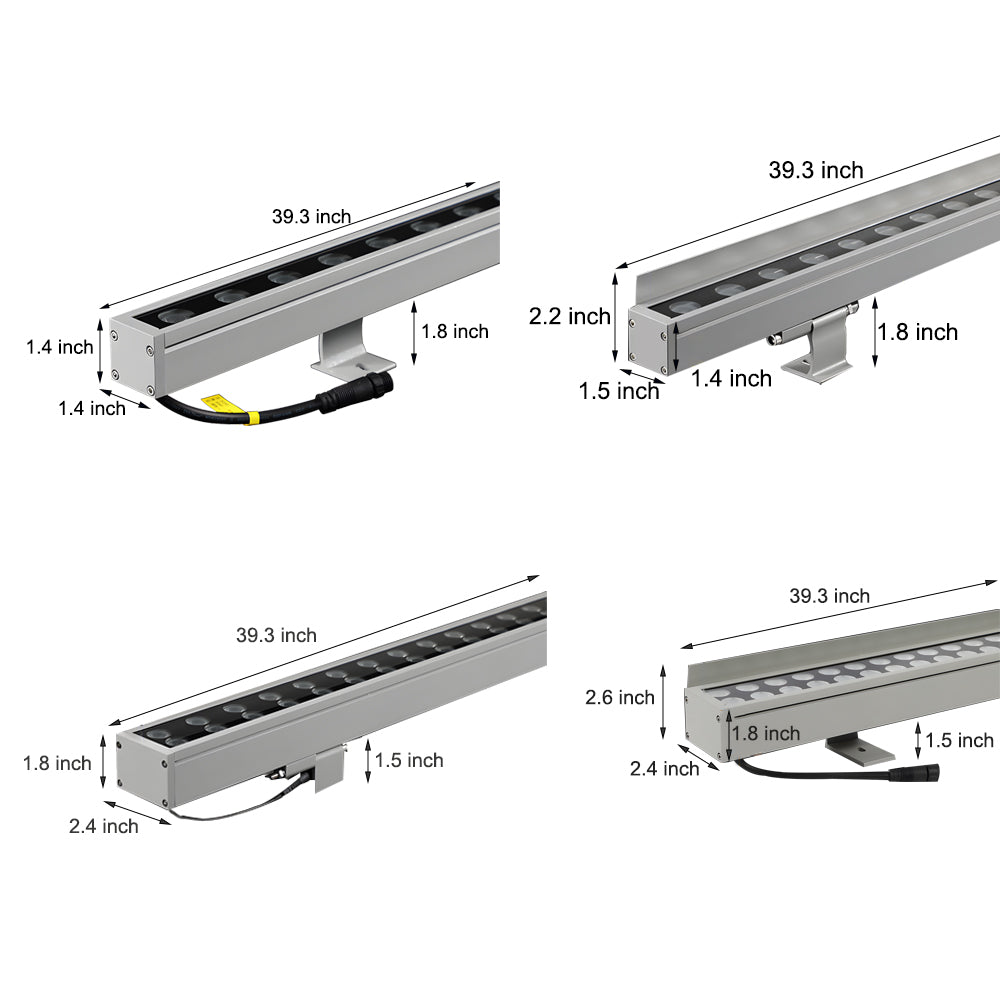

WEIGHTS & DIMENSIONS

Without Baffle:
18W:
Weight:	2.98lb
Size:	39.3' Length x 1.4' Width x 3.2' Height
24W:
Weight:	2.98lb
Size:	39.3' Length x 1.4' Width x 3.2' Height
36W:
Weight:	2.98lb
Size:	39.3' Length x 1.4' Width x 3.2' Height
48W:
Weight:	2.98lb
Size:	39.3' Length x 2.4' Width x 3.3' Height
72W:
Weight:	2.98lb
Size:	39.3' Length x 2.4' Width x 3.3' Height
With Baffle:
18W:
Weight:	2.98lb
Size:	39.3' Length x 1.5' Width x 4' Height
24W:
Weight:	2.98lb
Size:	39.3' Length x 1.5' Width x 4' Height
36W:
Weight:	2.98lb
Size:	39.3' Length x 1.5' Width x 4' Height
48W:
Weight:	2.98lb
Size:	39.3' Length x 2.4' Width x 4.1' Height
72W:
Weight:	2.98lb
Size:	39.3' Length x 2.4' Width x 4.1' Height

NOTE

1 in = 2.54 cm; 1 cm = 0.39 in

39.3-Inch Long 24V Linear LED Wall Washer
